TECHNOLOGY

- We got a great history, but the future is our way.

WE MAKE THINGS WORK

Backer has the largest technology portfolio in the industry. Continued investment in new technologies are critical to our success. Process and product development are supported by our meaningful investments in testing resources and labs. Our business grows through partnership with our customers that utilize our resources to develop a unique and competitive solution.

energy regulator control

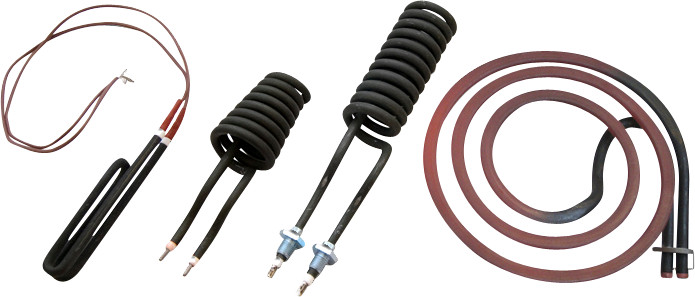

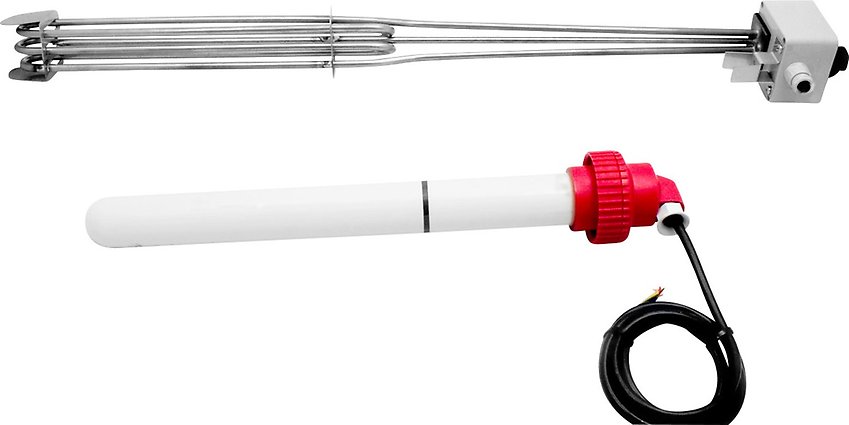

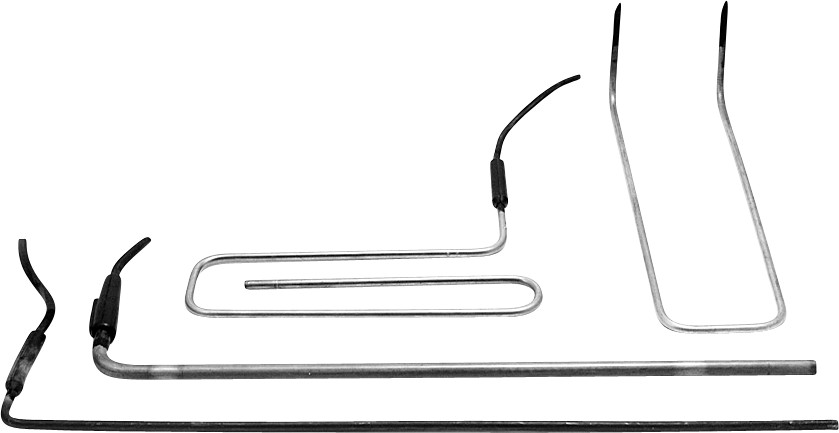

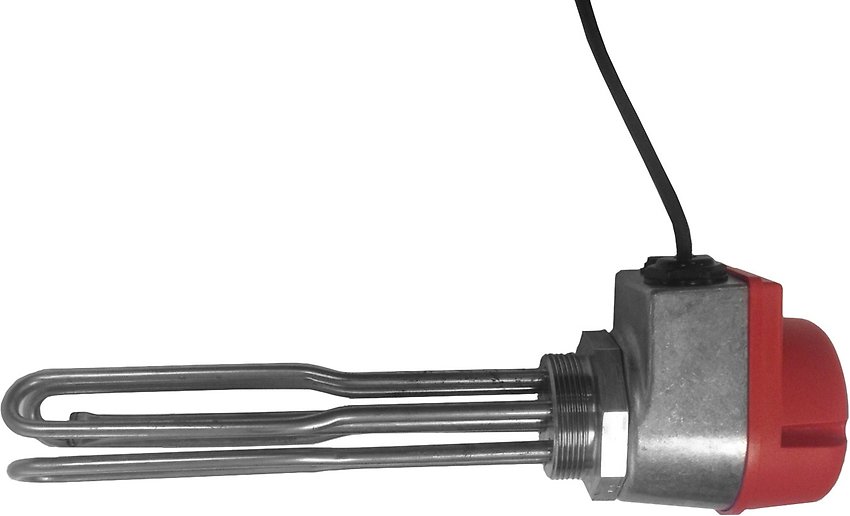

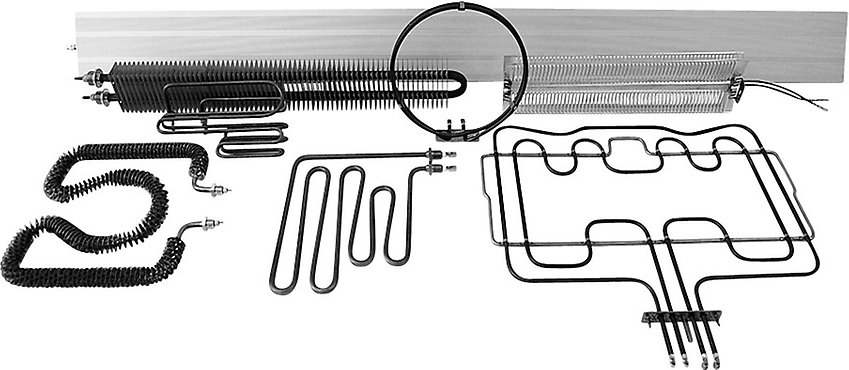

TUBULAR HEATING ELEMENTS

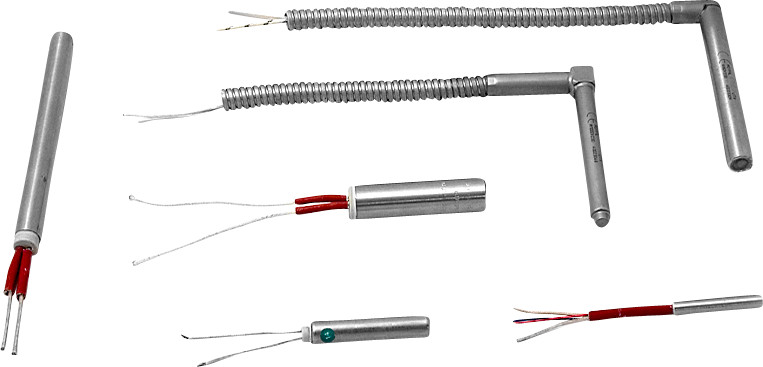

Traditional elements in diameters 6.0 to 21.0 mm. Lengths from 140 to 7200 mm. Material AISI 304, 321, 316L, Incoloy 800, 825. Temperature up to 940°C. Cartridge heaters, diameter 3.3-20.0 mm. Aluminium profiles for convection and radiation. Vulcanised tubular heating elements.

energy regulator control

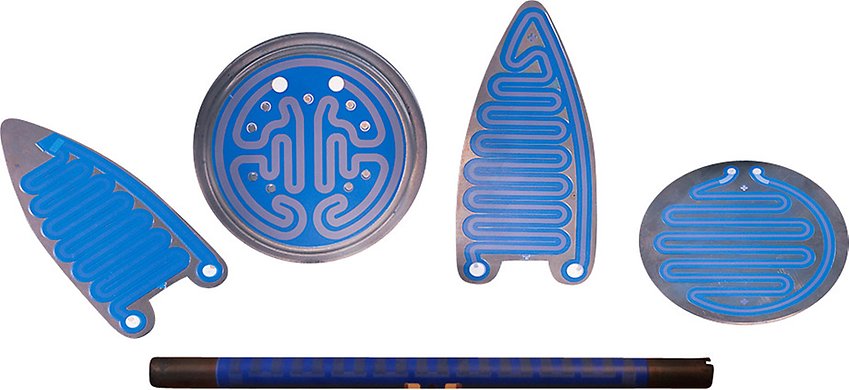

PRINTED ELEMENTS

Thick film elements in AISI 304, temperature max. 500°C. Foil elements in PVC, max. 70°C, polyester, max. 110°C, polyimide, max. 230°C, silicone, max. 230°C, micanite, max. 400°C. Custom connections. .

energy regulator control

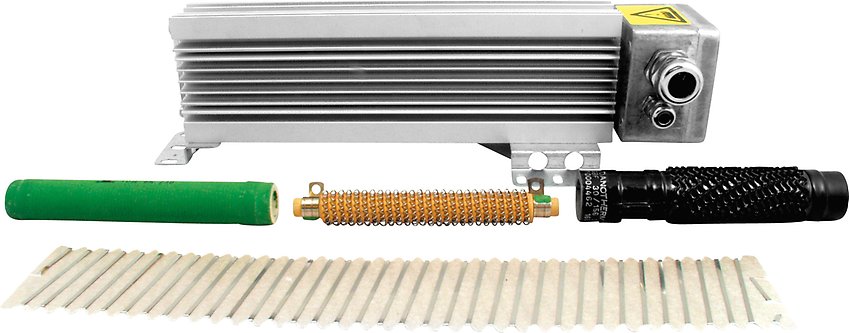

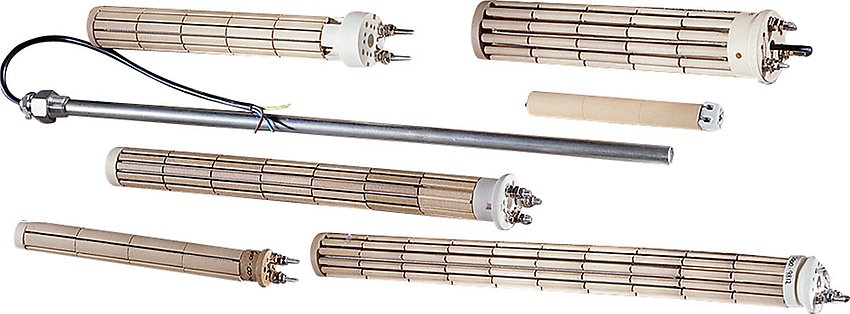

SUPPORTED WIRE ELEMENTS

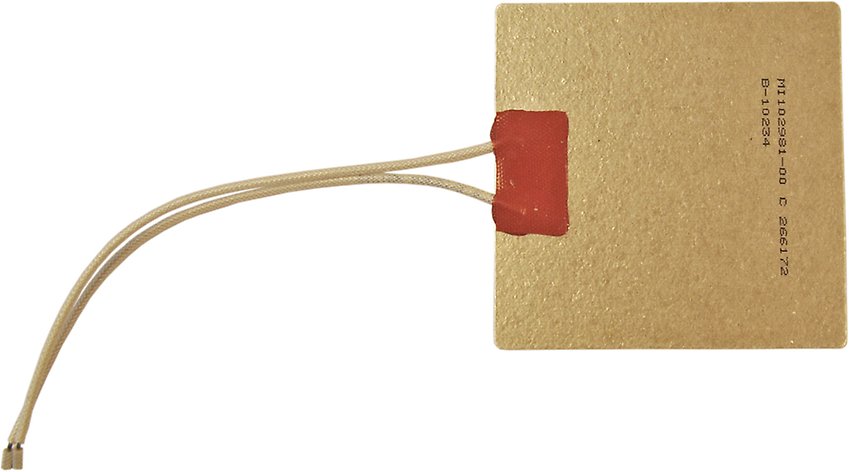

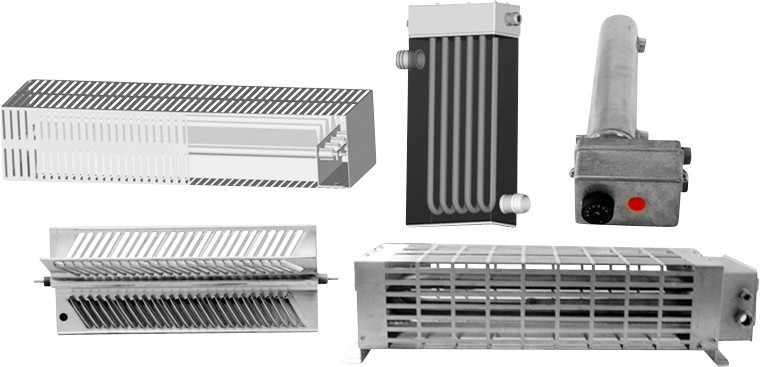

Micanite elements, ceramic elements, enameled elements/ resistors. Surface power 3-4 W/cm2 at max. 350°C. Max. 7 W/cm2 with good thermal conductivity and a good fit. Operating temperature max. 700°C. Aluminium housed brake resistors.

energy regulator control

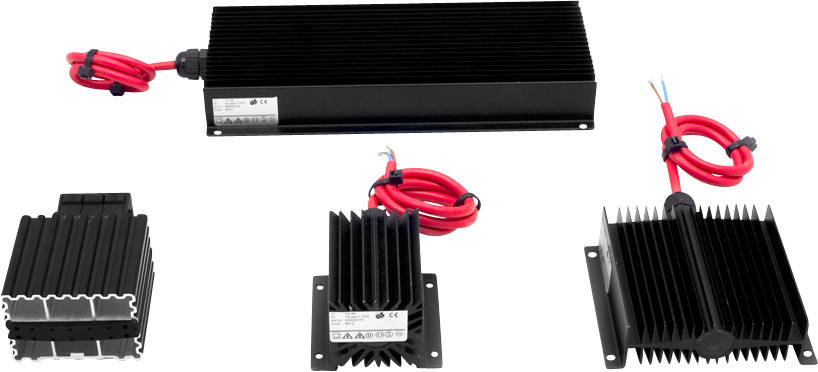

PTC ELEMENTS

Self-regulating function. Adjustment of power via air flow. Connection voltage 110-240 V and 12-36 V. Curie point 50°C-320°C.

Product examples

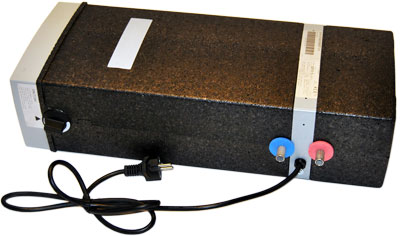

Backer Water Heater

energy regulator control

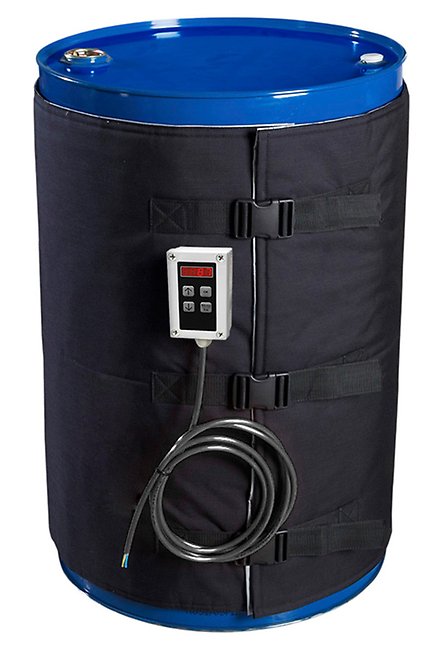

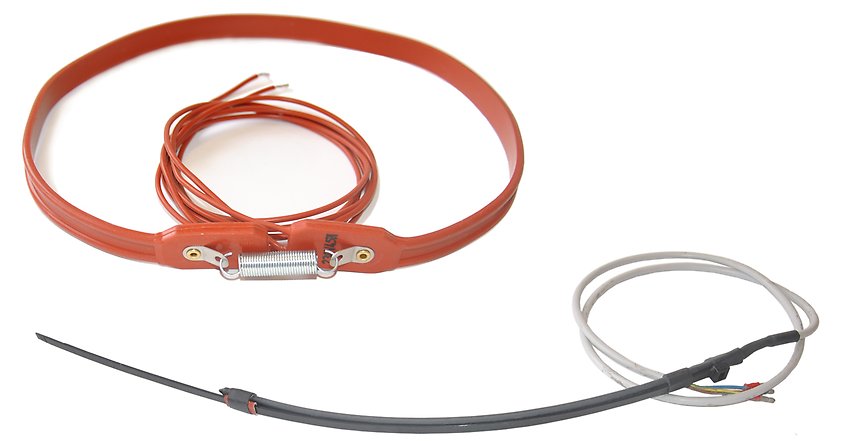

HEATING CABLES

Self-regulated with Thermoplastic or Flourpolymer up to 300°C and 120W/m. Parallell resistive constant power with Silicone or Flourpolymer up to 485°C 150W/m. High temperature with steel sheet up to 1000°C 250W/m. Long line with silicone for <20km.

energy regulator control

SPECIAL

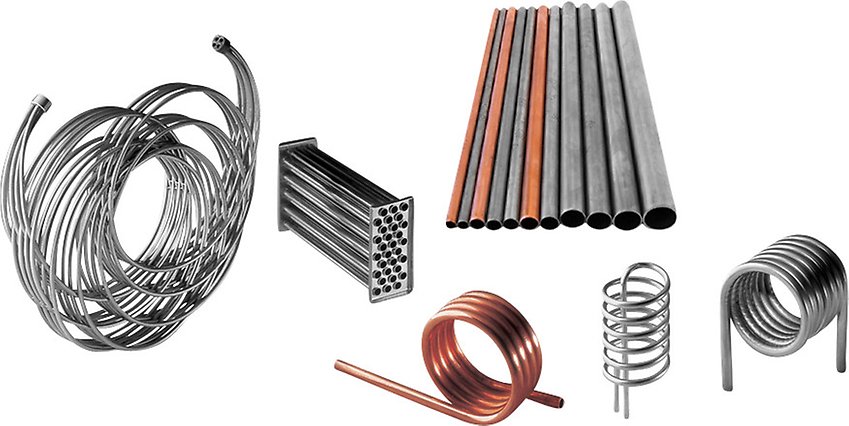

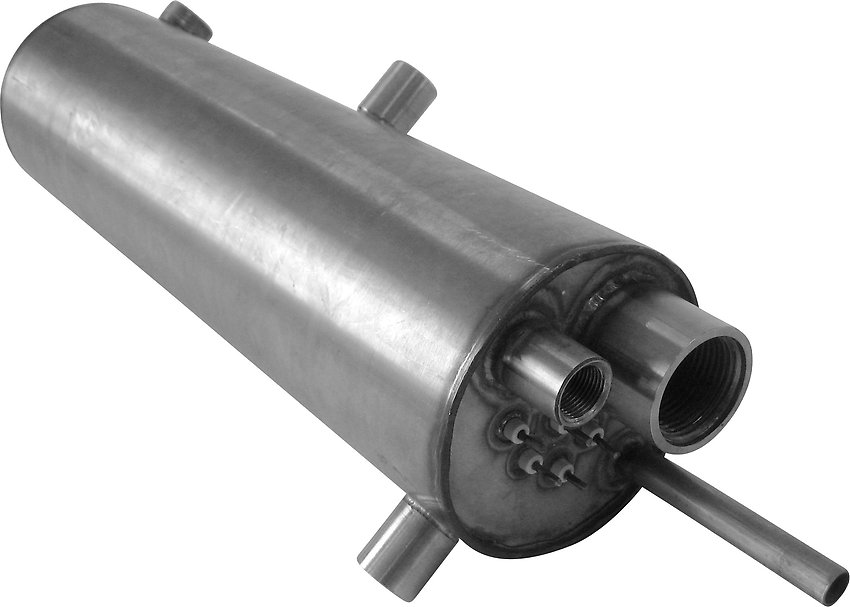

Components for element production, heat exchangers, heat treatment, furnace brazing, stainless pipes.

Product examples

energy regulator control

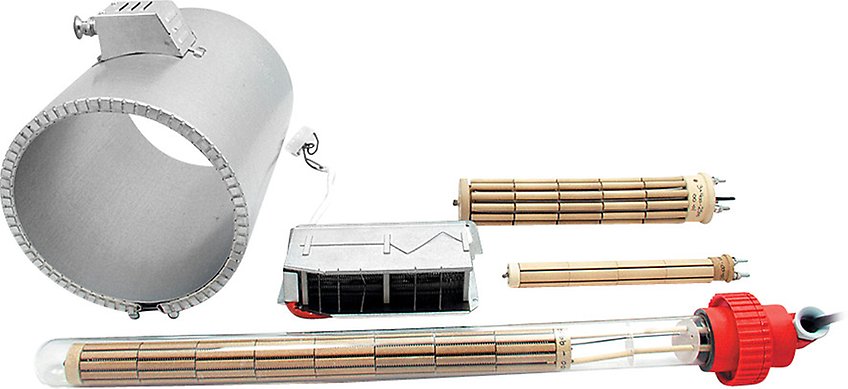

SUSPENDED WIRE ELEMENTS

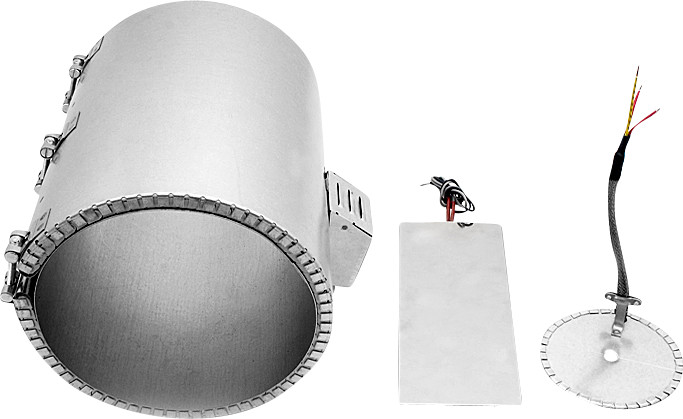

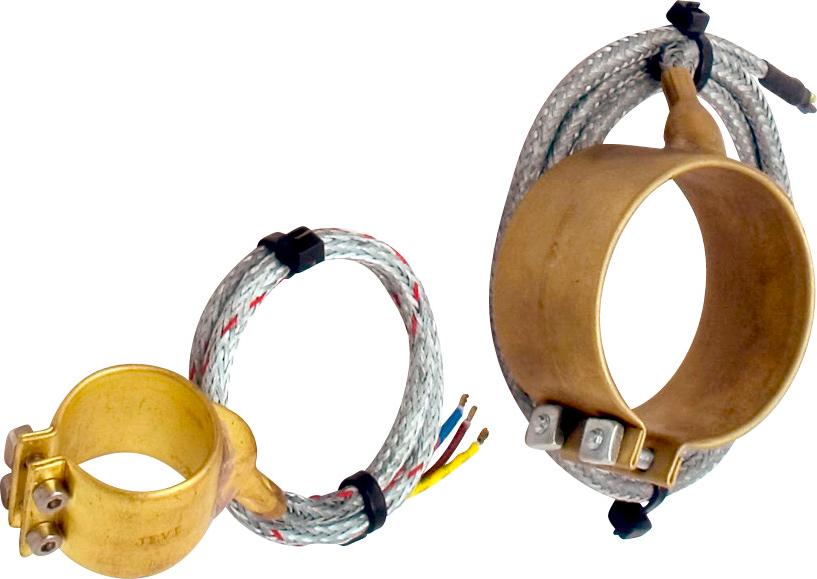

Rapid heating, thermostat adjustment and overheat protection. Band heaters max 700°C with 4,5W/cm2.

energy regulator control

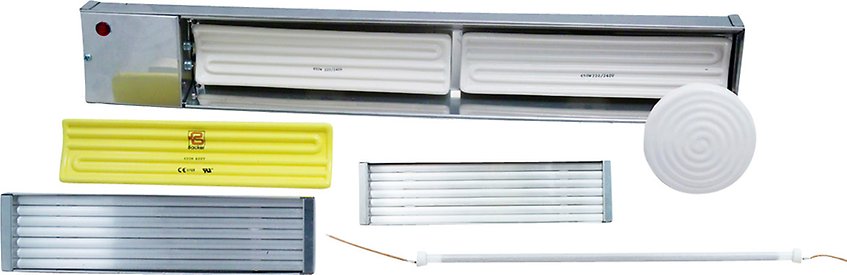

IR AND HALOGEN ELEMENTS

Material: Ceramic, quartz glass, quartz glass with halogen. Temperature 150-2400°C depending on the material.

Product examples

energy regulator control

HEAT PUMP TECHNOLOGY

Our most energy efficient heating technology. Air-to-air or air-to-water heating. Temperatures up to 70°C. Voltage 230-400V

Product examples
