Cartridge heaters, high power elements

– Quick and high power for tool heating

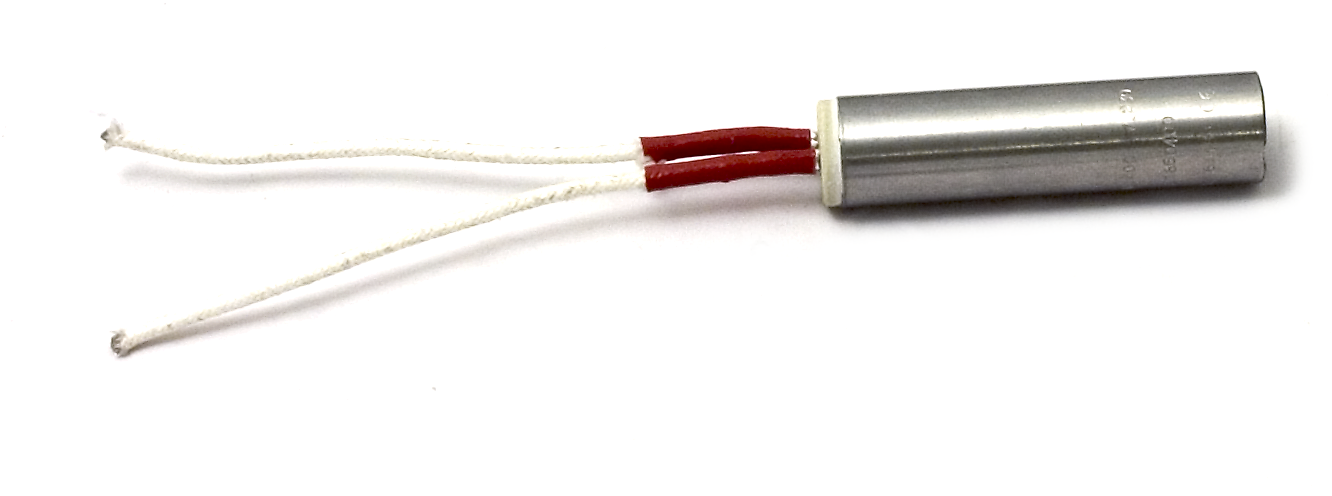

Cartridge heater

Cartridge heaters

Cartridge heaters, or high power elements, can to a specific area give very high power and are used mainly for tool heating.

Thanks to the design the heat is quickly distributed over the whole envelope surface of the element and the elements fulfill high demands of impact resistance and vibration security.

Technical data

Material

Stainless steel AISI 321/EN 1.4541

Dimension

Ø 6.5 , 8, 10, 12.5, 16, 20 mm

Inactive section app. 10 mm at the connection end and appr. 5 mm at the other end.

Connection

250 mm glass fibre armoured nickel wire

Helical protective hose, zincified steel strip

Wave hose (gas- and liquid tight)

Armoured hose, zincified

Right angle casing

Others

Brached holes are required. Tolerance H7 (Swedish standard). If a surface load greater that 20W/cm2 is required, individual adjustment is necessary.

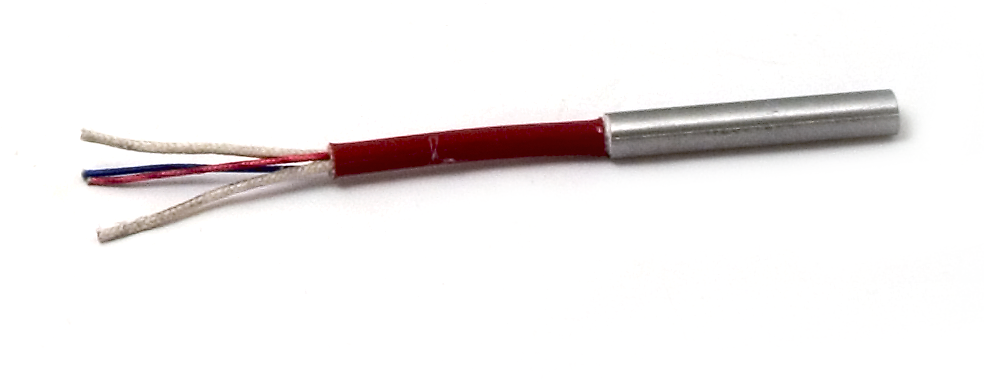

Product examples
