Tubular air heating elements

Tubular air heating elements

Backer manufactures tubular air heating elements for use in many different appliances, such as electrical water heaters, dishwashers and washing machines, boilers, coffee machines, fryers, industrial baths and oil filled radiators.

The Backer tubular heating element is the most frequent alternative for liquid heating. We manage a large number of production techniques, giving a chose within a widre range of element types. An optimal heat solution of an application is decided by user environment and operating temperature. You can from Backer for instance have an element with an operating temperature of as much as 900°C.

Technical data

Material

Mild steel – Grade D
Stainless steel:
AISI 304
AISI 316L
Incoloy 800
R 323
Ferritic steel:
1.4510
1.4512
1.4521
Aluminium

Dimensioner

Ø 6,5 mm
Ø 8,5 mm
Ø 14 mm
Ø 18 mm
Ø 21 mm

Assembly

Fixing in the object with flange/nipple

Connection

M4, M6, flat pin, spot welded cable, round pin 2.5 mm

Design

One, two alt. three wattage rating/element
Connection at one or two ends
According customer specification
Can be manufactured with UL, VDE approval

Example applications

  • Fan heater
  • Heating curtains
  • Ovens, grills
  • IR Radiators
  • Radiators
  • Train compartment heaters
  • Sterilisers
  • Convectors

Product examples

  • Brick element

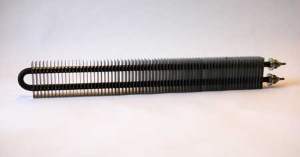

    Heating element with dia. 8.5 mm and 14 mm can be fitted with fins to increase their heat dissipation surfaces. Fins are available in steel for soldering or in aluzinc for press-fitting to tubular ele... >>Read more
  • Fin strip elements

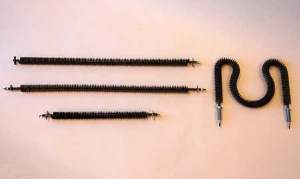

    Tubular element with diam. 8.5 mm and 14 mm can be fitted with fins, stripped vertically on the element. The fins increase the radiating area and reduce the surface temperature on the element without ... >>Read more

Fixing and connection devices

Savings in cost can often be made if elements are fitted with connection and fixing devices during manufacturing. Below you find the most frequent alternatives, which could be considered standard. We can also supply special flanges and alternative methods of fixing made completely to our clients' specifications.

When selecting connection and fixing devices it is often important to bear in mind the size of the series.

Fixing plate pressed onto the element - PDFOpen pdf-file with measurements and art.noPDF

Nipple pressed onto the element - Open pdf-file with measurements and art.noPDF

Types of cables and wiring

The heating elements may be supplied with connecting wiring which is normally spot welded to the terminal pins. Uninsulated as well as insulated wiring is avaliable. Uninsulated wiring can be fitted with insulative tubung. The joint between the wiring and the terminal pin can also be fitted with insulative tubing if required.

The most common types used

Wiring material

Insulation material

Max. operating temp.

Copper

-

180°C

Copper

Silicone

180°C

Copper

Fiber glass/silicone

180°C

Nickel

-

400°C

Nickel

Ceramic bushings

400°C

Nickel

Fiber glass/silicone

200°C
